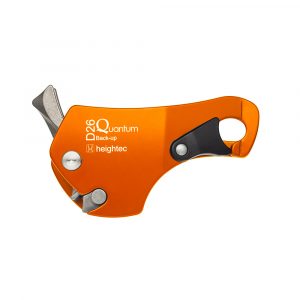

Heightec Quantum rope access back up Device
Heightec Quantum rope access back up device -A simple high performance rope device designed for rope access and the renewables sector.
The Heightec Quantum rope access back up device arrests a 2 person fall without damaging the rope. The unique Cam grips the rope in tow places preventing damage associated with the single loading point found on other similar devices.
It has minimum slippage during arrest on all rope types therefore minimising the fall distance and it does not damage the sheath - even on old or dirty rope.
The opening catch means that the device does not need to be detached from the lanyard to insert or remove rope.This not only simplifies the operation but also removes the risk of dropped objects during mid rope manoeuvres.
The cam prevents rope damage so no additional shock absorber is necessary. The Quantum can be attached to the harness via the cowstail or short webbing link.
The maximum lanyard length 0.45 meters up to a fall factor of 2 or lanyard length 0.9 meters which has a fall factor of 1, does not require additional energy absorber.
All component parts are visible and accessible making the device easy to inspect and maintain.
The Quantum contains high strength alloy with stainless steel friction surfaces for reduced wear and consistent performance.
Suitable for two person use
The Quantum rope access back up device is part of Heightec's rope access kit (WK22)
02 Key Features
Suitable for 2 person rescue
Doesn’t damage the rope sheath- even on old or dirty rope.
Minimum slippage during arrest on all rope types to minimise fall distance
Opening catch allows easy attachment/detachment from rope at any point without risk of dropping the device.
Does not require additional energy absorber
Can be used with a dynamic rope lanyard (cowstail).
All parts visible for ease of inspection and maintenance.
High strength alloy with stainless steel friction surfaces
Individually marked for traceability
|Size:||10.5mm – 11.0mm rope diameter|
|EN Test Mass:||100kg|
|Conformity||EN353-2, EN358, EN12841A|
|Materials||Anodised aluminium and stainless steel construction|
|Industries||Roof Access, Renewables|
Satisfies requirements of both EN 353-2 (vertical fall arrest) and EN358 (work positioning) standards.
